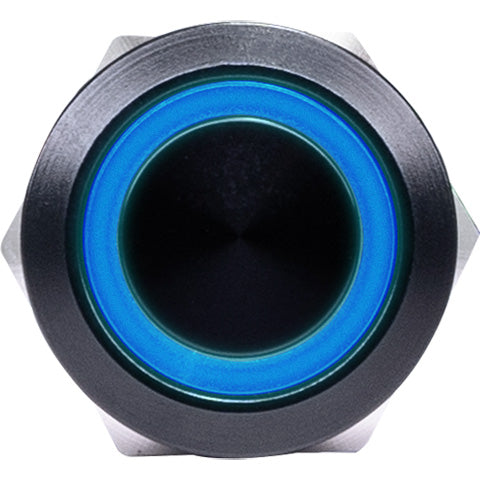

  • E-Stopp Black Billet Button with Blue LED - close up
1 5

Control Module with Button

Control Module with Button

ESR1-CM-SIL-RED

The E-Stopp Control Module with Button is a factory-compatible replacement designed for E-Stopp Universal Electronic E-Brake Kits. This replacement assembly includes a flanged black plastic control module and a 22 mm stainless steel billet button with an integrated LED indicator for clear parking brake engagement and release operation.

Designed for straightforward installation, the module operates on 12 V constant power and features a secondary output wire for integration with a factory parking brake light or digital dashboard indicator. An optional safety lockout connector adds an additional layer of control, making this replacement control module ideal for automotive, mobility, and custom vehicle electronic parking brake systems.

Includes a stainless steel billet button with an integrated red LED or a black stainless steel billet button with an integrated blue LED.

$159.99 USD
$159.99 USD
SALE Sold out
Shipping calculated at checkout.
Button Type
View full details

Technical Specifications

  • Control Module

    Housing: Flanged black plastic

    Dimensions:

    • Length: 5-1/4 in (13.4 cm) (including flanges)
    • Width: 3 in (7.7 cm)
    • Height: 1-3/8 in (3.5 cm)

    Power Requirement:

    • 12V/10A constant power
    • Draws less than 1mA when idle

    Additional Features:

    • Optional safety lockout connector
    • Secondary wire for dashboard or digital dash parking brake indicator

  • Switch

    • Type: 22 mm latching billet button with LED
    • Wire Harness Length: 18 in (46 cm)
