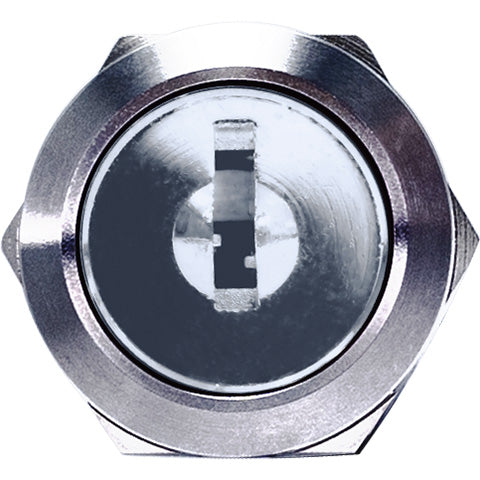

  • E-Stopp Key Lock Switch - close up
1 3

Control Module with Key Lock Switch

Control Module with Key Lock Switch

ESR1-CM-KEY-RED

The E-Stopp Control Module with Key Lock Switch and Red LED is a factory-compatible replacement designed for E-Stopp Universal Electronic E-Brake Kits. This replacement assembly includes a flanged black plastic control module and a 22 mm chrome key lock trigger with two keys, providing secure electronic parking brake operation and theft-deterrent functionality. The associated red LED clearly indicates brake engagement and release operation.

Designed for straightforward installation, the module operates on 12 V constant power and features a secondary output wire for integration with a factory parking brake light or digital dashboard indicator. An optional safety lockout connector adds an additional layer of control, making this replacement control module ideal for automotive, mobility, and custom vehicle electronic parking brake systems.

$179.99 USD
$179.99 USD
SALE Sold out
Shipping calculated at checkout.
View full details

Technical Specifications

  • Control Module

    Housing: Flanged black plastic

    Dimensions:

    • Length: 5-1/4 in (13.4 cm) (including flanges)
    • Width: 3 in (7.7 cm)
    • Height: 1-3/8 in (3.5 cm)

    Power Requirement:

    • 12V/10A constant power
    • Draws less than 1mA when idle

    Additional Features:

    • Optional safety lockout connector
    • Secondary wire for dashboard or digital dash parking brake indicator

  • Switch

    • Type: 22 mm latching chrome key lock switch
    • Keys Included: Two (2)
    • Indicator: Red LED (engagement/release operation)
    • Wire Harness Length: 18 in (46 cm)
    • Extra: Key removal locks brake in engaged position for added security
